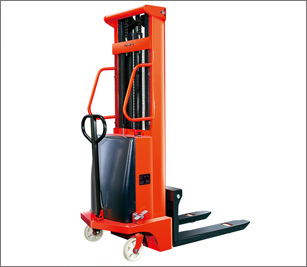

Semi Electric Stacker
Advantages :
- Robust Steel profile construction.
- Simple and convenient lifting operating system.
- Light and easy manual steering system, equipped with a parking brake.
- Smooth control of precise lifting and lowering.
- Special design are available according to customers’ requirements.
Main Specifications :
| Model No. | Unit | NGT-SES1030 | NGT-SES1530 |
| Capacity | Q(kg) | 1000 | 1500 |
| Load centre distance | mm | 500 | 500 |
| Lowered fork height | mm | 90 | 90 |
| Height, mast lowered | mm | 2100 | 2100 |
| Max. lift height | mm | 3000 | 3000 |
| Height,mast extended | mm | 3500 | 3500 |
| Overall length | mm | 1770 | 1770 |
| Overall width | mm | 820 | 820 |
| Fork dimensions | s/e/l(mm) | 60/180/1000 | 60/180/1000 |
| Distance between fork-arms | mm | 550 / 685 | 550 / 685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2210 | 2235 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2140 | 2188 |
| Turning radius | Wa(mm) | 1400 | 1400 |
| Lift speed,laden/unladen | mm/s | 135/150 | 0.08/0.1 |
| Lowering speed,laden/unladen | m/s | 0.15/0.12 | 0.15/0.12 |
| Lift motor rating at S3 15% | kW | 2 | 2 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/85 | 24/85 |
| Service weight (with battery) | kg | 382 | 580 |
