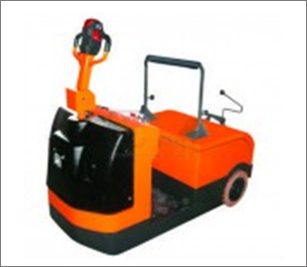

Tow Truck – Stand On
Our NewGentech Stand On tow truck is mainly used for towing in house application, and it is especially suitable for goods that move in the continuous flow. It is quite appropriate for industries that just-in-time principles are needed. This kind of tractor has a loading capacity up to 3,000kg, and its operation is safe, efficient and easy. Its advanced integrated drive and control system ensure reliable performance and high efficiency.Main Specifications :
| Model | Unit | Stand On Tow Truck |
| Capacity | W Kgs | 2000 / 3000 |
| Towing Type | -- | Hook |
| Towing pin die | mm | 20 |
| Overall Length | mm | 1340 |
| Overall Width | mm | 830 |
| Overall Height | mm | 1400 |
| Ground Clearance | (mm) | 50 |
| Hook Centre | (mm) | 230 |
| Hook Clearance | (mm) | 30 |
| Drive wheel | (mm) | 250 X 70 |
| Load Wheel | (mm) | 230 X 70 |
| Drive Motor | Kw | 1.2 AC |
| Battery | V / Ah | 24 / 195 |
