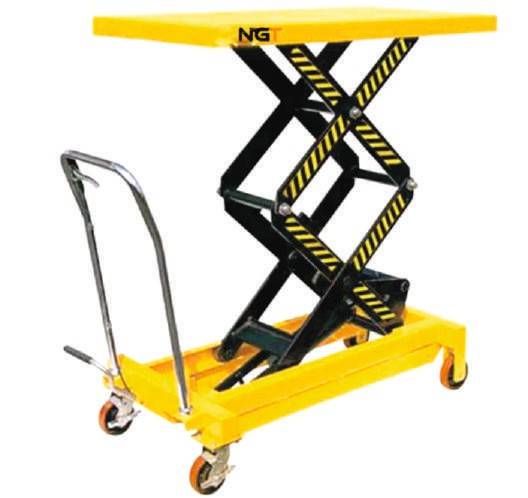

Mobile Double Scissor Lift Table
Advantages :
  • Valuable material handling equipment for use as a feeding table on assembly line.
  • Structural heavy duty steel construction.
  • Easy action foot operated hydraulic lift for raising table top to desired level.
  • Hand operated table descent control.
  • Over load by pass valve protects operator and pump.

Model No. Unit UT-MSLT350 UT-MSLT680
Capacity kg 350 680
Max. lift height h12(mm) 1300 1500
Min. height of table h13(mm) 350 474
Lifting height h3(mm) 950 1026
Table size lxb5xs(mm) 910 x 500x50 1220 x 610x55
Total height h14(mm) 970 1038
Overall length l1(mm) 980 1289
Foot pedal cycles to max height ---- =60 35/80
Wheel diameter (mm) 127 150
Service weight kg 105 185

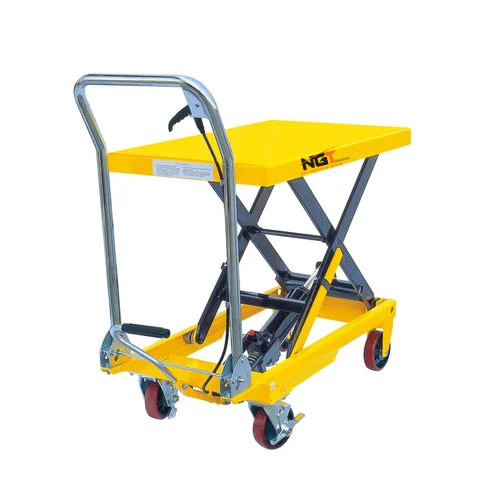

Mobile Single Scissor Lift Table
Advantages :
  • Valuable material handling equipment for use as a feeding table on assembly line.
  • Structural heavy duty steel construction.
  • Easy action foot operated hydraulic lift for raising table top to desired level.
  • Hand operated table descent control.
  • Over load by pass valve protects operator and pump.

Main Specifications :
Model No. Unit UT-MSLT500 UT-MSLT1500
Capacity kg 500 1500
Max. lift height h12(mm) 900 1000
Min. height of table h13(mm) 340 420
Lifting height h3(mm) 560 580
Table size lxb5xs(mm) 855x500x50 1220x610x60
Total height h14(mm) 970 962
Overall length l1(mm) 925 1379
Foot pedal cycles to max height --- =32/=45 =70
Wheel diameter d(mm) 127 150
Service weight kg 87 135
