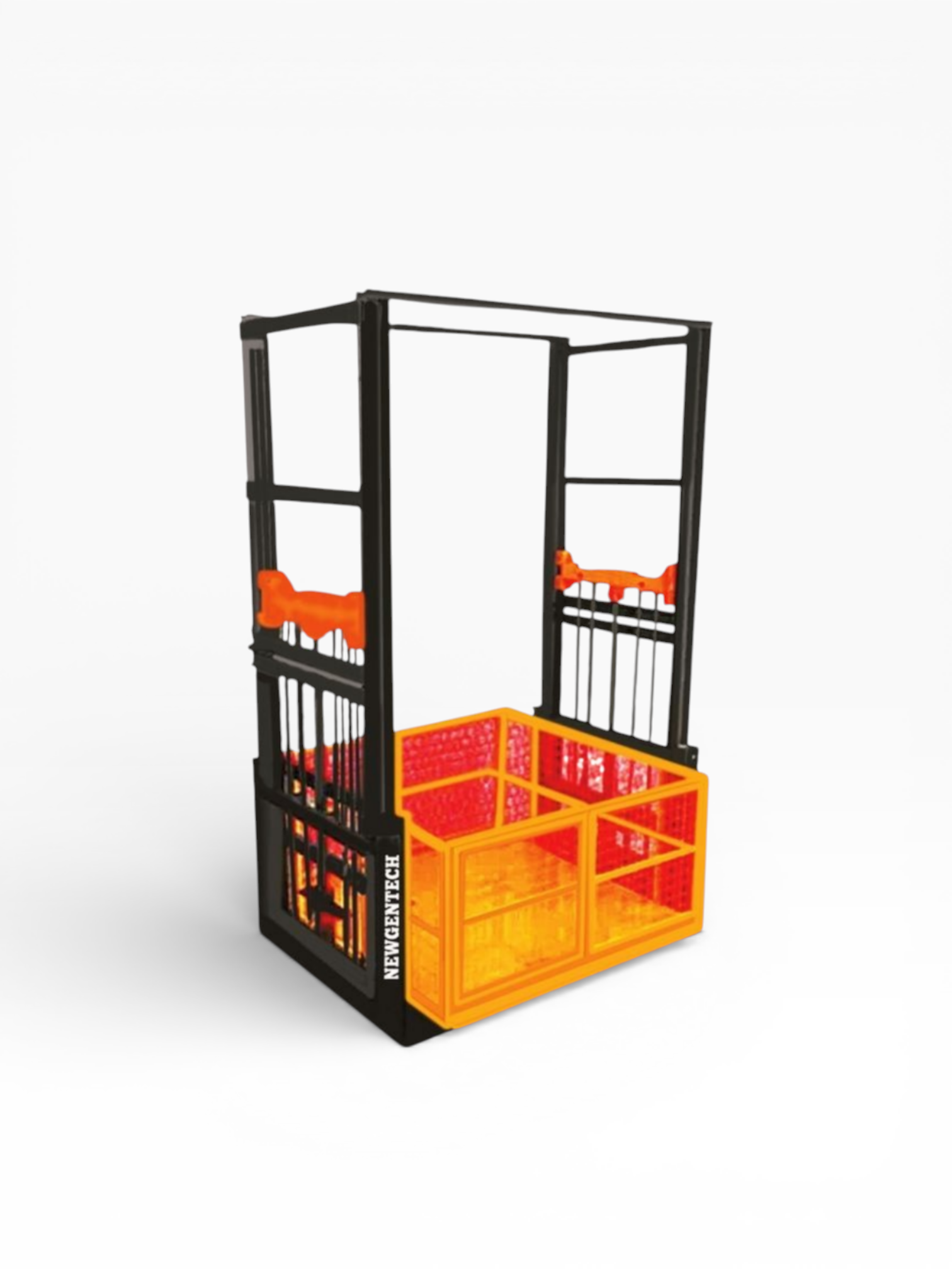

Double Mast Goods Lift
Price On Request
Model: NGT-DMGL-1/5
Key Features & Specifications
- Dynamic Load Capacity: 1,000 kgs – 5,000 kgs, suitable for medium to heavy-duty goods handling
• Lifting Height: Customisable as per site and application requirements
• Double Mast Design: Twin-column structure for enhanced stability and load distribution
• Hydraulic Operation: Powerful AC 3-phase electro-hydraulic system for smooth and stable lifting
• Remote & Push-Button Control: Flexible, intuitive operation from a safe distance
• Platform Options: Open platform or fully enclosed cage as per application
• Choice of Materials: Standard mild steel finish or optional stainless steel for hygienic or corrosive environments
• Safety Features: Overload protection, limit switches, emergency stop, safety interlocks, and guide rail protection
• Robust Construction: Engineered for long operational life with minimal maintenance
Capacity: 1,000 / 5,000 Kgs (NGT-DMGL-1/5)
Newgentech Make Double Mast Goods Lifts are engineered for safe, stable, and efficient vertical transportation of heavy goods in multi-level industrial and warehouse environments. The NGT-DMGL-1/5 model features a dynamic load capacity of 1,000 kgs to 5,000 kgs, making it ideal for lifting heavy pallets, machinery, and bulk materials across multiple floors with enhanced stability.
Designed with a reinforced twin-mast structure, this goods lift offers superior load balance and rigidity compared to single mast systems, ensuring smooth and controlled lifting even under higher load conditions. The robust electro-hydraulic lifting system and precision-guided mast assembly ensure long service life and reliable performance in high-frequency operations.
The lift operation is controlled via a push-button control panel or optional wireless remote, providing maximum operator convenience and safety. Available in mild steel or optional stainless steel construction, the Double Mast Goods Lift is well suited for logistics hubs, manufacturing plants, warehouses, and heavy engineering applications.
