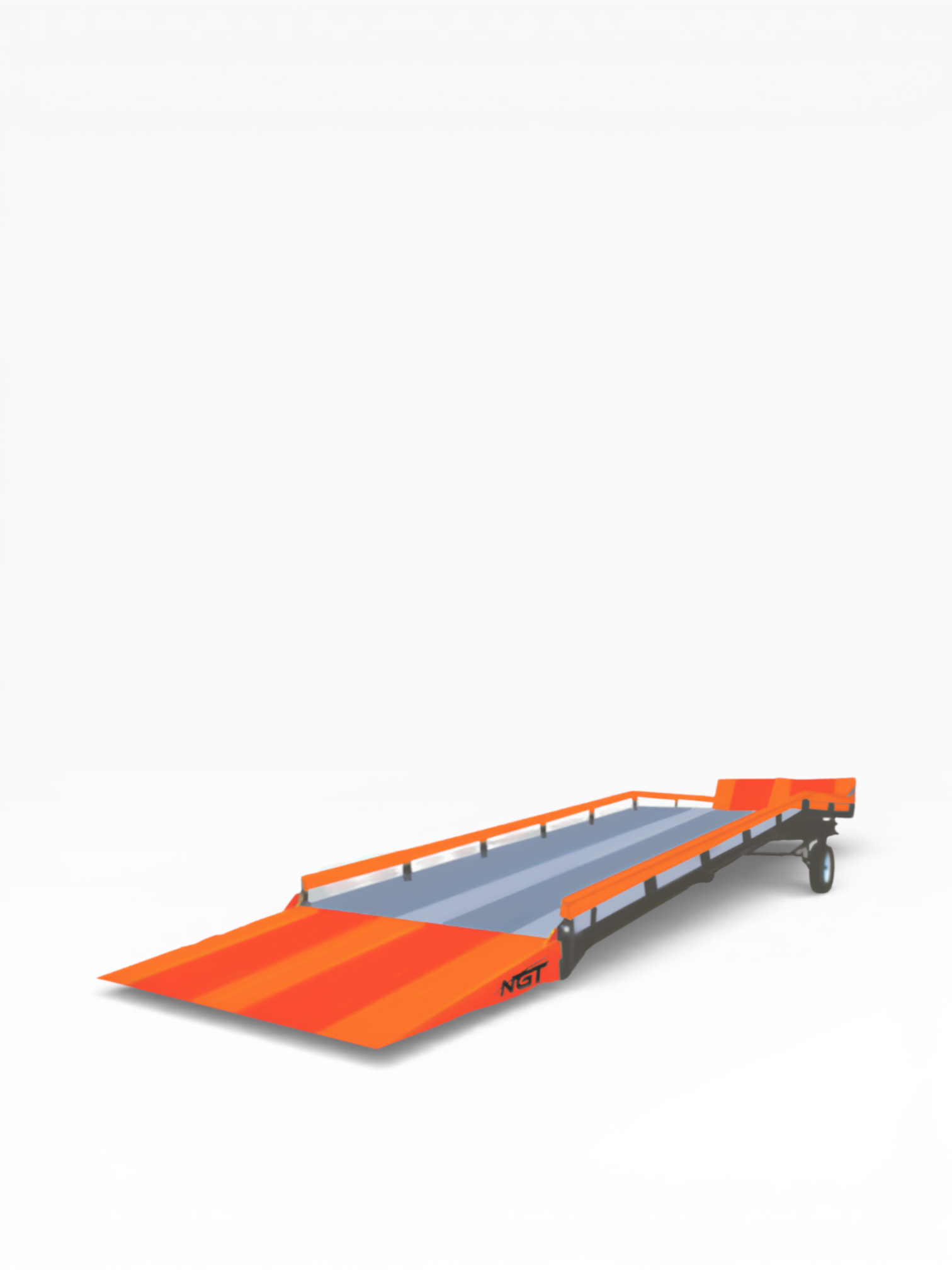

Mobile Dock Ramp
₹610,000.00
Model: NGT-MDR-10/15
Key Features & Specifications
- Dynamic Load Capacity: 10,000 kgs – 15,000 kgs, suitable for bulk and heavy-duty freight
• Adjustable Height Range:
– Max raised: 1,200mm – 1,600mm (customisable)
– Min lowered: 150mm – 300mm
• Hydraulic Operation: Powerful AC 3-phase electro-hydraulic system for smooth lifting and controlled lowering
• Mobility: Heavy-duty wheels with towing eye for easy movement between docks
• Remote & Push-Button Control: Flexible and intuitive operation from a safe distance
• Choice of Materials: Standard mild steel construction or optional stainless steel for corrosive / hygienic environments
• Anti-Skid Platform: Chequered plate surface for safe forklift movement
• Robust Construction: Engineered for long service life with minimal maintenance
Capacity: 10,000 / 15,000 Kgs (NGT-MDR-10/15)
Newgentech Make Mobile Dock Ramps are engineered to provide maximum flexibility for loading and unloading operations where fixed dock infrastructure is unavailable or limited. The NGT-MDR-10/15 features a dynamic load capacity of 10,000 kgs to 15,000 kgs, enabling smooth and safe movement of forklifts between ground level and truck containers for fast, damage-free cargo handling.
Designed for both indoor and outdoor applications, the ramp is equipped with a heavy-duty hydraulic lifting system that allows height adjustment to match different vehicle bed levels. The robust steel structure, available in mild steel or optional stainless steel, ensures high durability, stability, and long operational life even under demanding industrial conditions.
The ramp is fully mobile, fitted with solid tyres / PU wheels and a towing arrangement, allowing easy positioning across multiple loading bays. Operation is simple and safe via push-button or remote control, minimizing operator effort and improving productivity.
