Dual Mast Goods Lift
The NGT Dual Mast Goods Lift is designed for safe and efficient vertical movement of heavier goods between floors, mezzanines and elevated storage or production areas.
With a robust dual-mast configuration and enclosed load platform, it provides enhanced stability for demanding industrial material-transfer applications where regular movement of goods between levels is required.
Specification
| Specification | Unit | NGT-GL-DM Series |
|---|---|---|
| Rated Capacity | Ton | 1–4 |
| Maximum Lift Height | m | Up to 13 |
| Maximum Speed | m/min | 5 |
| Mast Configuration | — | Double Mast |
| Construction Material | — | Mild Steel / Stainless Steel |
Overview
A Simpler Way to Move Goods Vertically
When heavier loads need to move between floors regularly, manual handling or temporary lifting arrangements can quickly become inefficient.
The NGT Dual Mast Goods Lift provides a dedicated vertical material-transfer system for moving goods between defined levels within warehouses, manufacturing plants and industrial facilities.
Its dual-mast construction provides stable platform guidance, while the enclosed cabin helps create a controlled load-carrying area during vertical movement.
Load → Secure → Lift → Transfer
Features
Dual Mast Construction
Dual structural support provides stable guidance for the platform during vertical material movement.
Up to 2000 kg Capacity
Designed for heavier industrial material-transfer requirements compared with the single-mast configuration.
Fully Enclosed Cabin
The supplied specification calls for a cabin enclosed with MS sheet and an access door with limit-switch interlocking
Electro-Hydraulic Operation
Hydraulic lifting powered by a three-phase electric motor provides controlled vertical material movement.
Interlocked Access
Door limit-switch interlocking forms part of the specified access arrangement.
Industrial Construction
Robust steel construction with an MS chequered platform is specified for industrial use.

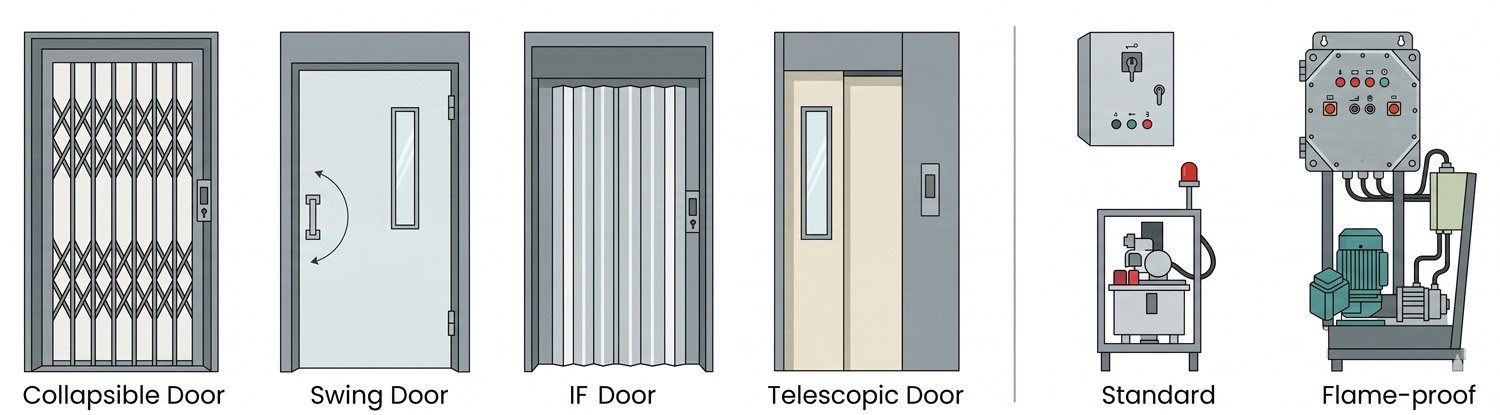

Door Types & Motor Options
Applications
Warehousing
Transfer cartons, bins, packaged goods and compatible materials between warehouse levels and mezzanine storage areas.
Manufacturing
Move components, tools, work-in-progress materials and finished goods between different production or storage levels.
Distribution Centres
Support vertical stock movement between storage and operating floors where suitable.
Mezzanine Storage
Connect ground-level operations with elevated storage areas for more efficient material movement.
Pharma & Chemical
Move spares, consumables, tools and other materials between storage levels.
Still Moving Materials Between Floors Manually?
Share your maximum load, required cabin size, lift height, number of floors and loading method with NGT. Our team can help configure a Dual Mast Goods Lift around your facility and material-flow requirement.
