5000 kg Hydraulic Pallet Truck

Heavy-duty hydraulic pallet truck engineered for reliable handling of loads up to 5000 kg in demanding industrial applications.

Capacity

5000 kgs

Fork Length

1150/1220 mm

Fork Width

550/685 mm

Wheel

Nyon/PU
✦ GST Invoice    ✦ 12-Month Onsite Warranty    ✦ Customized Solutions    ✦ Genuine Spare Parts    ✦ PAN India Service Network    ✦ Expert Technical Support    ✦ Drive & Support Wheels Available✦ GST Invoice    ✦ 12-Month Onsite Warranty    ✦ Customized Solutions    ✦ Genuine Spare Parts    ✦ PAN India Service Network    ✦ Expert Technical Support    ✦ Drive & Support Wheels Available

Specification

Specification Unit NGT-HPT-5000-1150-540-85 NGT-HPT-5000-1220-685-85
Capacity kg 5000 5000
Pump Type — Integrated Integrated
Service Weight (Nylon Wheel) kg 130 130
Service Weight (Steel Wheel) kg 140 140
Lifting Height mm 105 105
Max. Fork Lifting Height mm 190 190
Lowered Height of Fork mm 85 85
Fork Outside Distance mm 540 685
Fork Length mm 1150 1220
Fork Width mm 180 180
Tyre Type — Nylon Nylon
Tyre Size, Drive Wheels mm 180 × 50 180 × 50
Tyre Size, Load Wheels mm 80 × 66 80 × 66

Overview

The 5000 kg Hydraulic Pallet Truck is an economical and practical solution for loading, unloading and moving super-heavy palletized goods.

Its heavy-duty steel construction is designed for demanding industrial applications, while the hydraulic pump unit uses a large piston to reduce operating effort during lifting. With a choice of fork lengths and overall fork widths, the truck can accommodate different pallet configurations and heavy-load handling requirements.

Features

Heavy-Duty Construction

Robust construction designed to withstand demanding industrial material-handling operations.

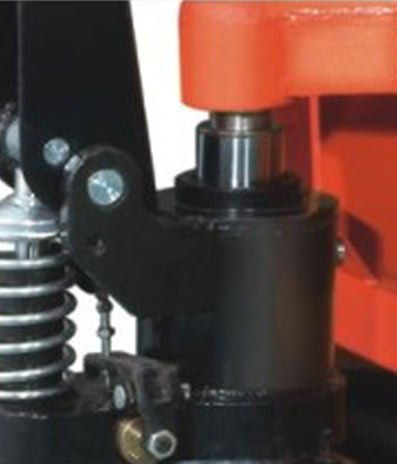

Super Heavy-Duty Hydraulic Pump

Powerful hydraulic pump system designed specifically for high-capacity load handling.

Ergonomic Handle

Designed for convenient control during lifting, lowering and movement.

Nylon / PU Wheel Options

Choose between Nylon and PU wheel configurations according to the application requirement.

Multiple Fork Options

Available with 1150 / 1220 mm fork lengths and 550 / 685 mm fork widths.

5000 kg Load Capacity

Built for handling palletized loads weighing up to 5 tons.

Applications

Warehousing

Movement of palletized goods between storage, staging & dispatch areas.

Manufacturing

Movement of palletized goods across production facilities.

Distribution Centres

Move pallets between receiving, storage, picking and dispatch areas.

Logistics & 3PL

Pallet movement in logistics and material handling operations.

Heavy Industries

Pallet movement across a range of industrial environments.

Pharma & Chemical

Pallet movement in clean environment in food, pharma and chemical

Need a Customized Pallet Truck?

Standard forks don’t suit every load. NGT offers customized fork configurations for specialized pallet and material handling requirements.

  • Reel Handling

  • Narrow Fork

  • Wide Fork

  • Short Fork

  • Single Fork

Not Sure Which Pallet Truck You Need?

Share your load, pallet dimensions and application with our team, and we’ll help you identify the right configuration.
