Heavy Duty Skates

NGT Heavy Duty Skates are compact, high-capacity load-moving systems designed for relocating heavy machines, industrial equipment and large components across smooth, level floors.

Capacity

4–16 Tonnes

Rollers

4–16 per Skate

Roller Type

PU with Ball Bearings

Application

Heavy Machinery Moving

✦ GST Invoice    ✦ 12-Month Onsite Warranty    ✦ Customized Solutions    ✦ Genuine Spare Parts    ✦ PAN India Service Network    ✦ Expert Technical Support    ✦ Drive & Support Wheels Available✦ GST Invoice    ✦ 12-Month Onsite Warranty    ✦ Customized Solutions    ✦ Genuine Spare Parts    ✦ PAN India Service Network    ✦ Expert Technical Support    ✦ Drive & Support Wheels Available

Specification

Specification Unit NGT-SK-X4+Y4 NGT-SK-X8+Y8 NGT-SK-X16+Y16
Load Capacity tonne 4 8 16
No. of Rollers (X / Y) Nos. 4 / 4 8 / 8 16 / 16
Turnplate / Support Dimensions (X / Y) mm 150 / 140 × 120 160 / 200 × 160 200 / 240 × 200
Handle / Adjustable Lever Length (X / Y) mm 800 / 300–1000 1100 / 400–1400 1100 / 400–1500
Overall Size – X mm 230 × 230 × 110 560 × 420 × 110 936 × 500 × 110
Overall Size – Y mm 170 × 140 × 110 200 × 200 × 110 310 × 220 × 110
Net Weight kg 28 72 124

Overview

NGT Heavy Duty Machinery Skates provide a practical solution for moving heavy machinery and equipment where conventional manual handling is difficult.

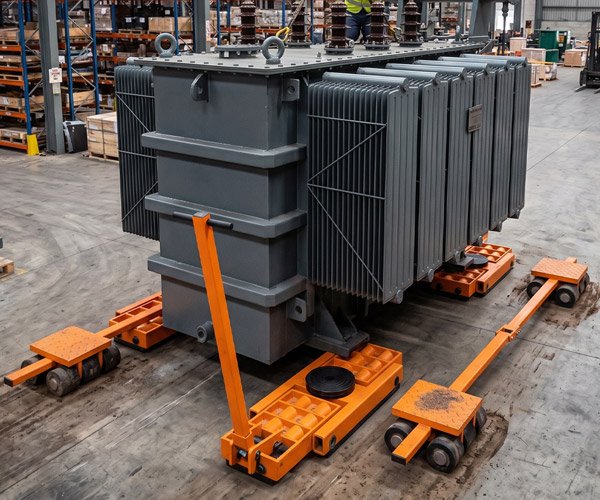

The load is supported on multiple low-profile skates, helping distribute its weight while the rollers allow it to be moved across the floor. A turnable front skate and adjustable steering handle help guide the load during relocation.

Available in 4, 8 and 16 tonne configurations, the range can be selected according to the equipment weight and movement requirement.

Important: Machinery skates should be operated on a smooth, flat and sufficiently load-bearing floor.

Features

Up to 16 Tonne Capacity

Available in 4 T, 8 T and 16 T configurations for moving different sizes of industrial machinery and equipment.

Turnable Skate Design

The steering-side skate can be turned to help control the direction of the load during machinery relocation.

PU Rollers with Ball Bearings

PU rollers with ball-bearing construction support smooth rolling while helping protect suitable industrial floor surfaces.

Low Profile Construction

The compact 110 mm overall height makes the skates easier to position beneath machinery after the load has been raised.

Heavy-Duty Construction

Robust construction is designed to support demanding machinery-moving and industrial relocation applications.

Modular Load Moving

Skates can be used as part of a coordinated load-moving arrangement, with configurations selected according to load size and capacity requirements.

Applications

Machinery Installation

Positioning and relocating heavy machines during new equipment installation and commissioning.

Manufacturing

Moving production machinery and heavy equipment during plant layout changes.

Machine Shops

Controlled relocation of CNC machines, presses, machining equipment and others.

Need to Move Heavy Machinery Inside Your Facility?

Share your machine weight, dimensions, floor condition and required movement distance, and our team will help you identify a suitable heavy-duty skate configuration.
