Scissor Lift Table Truck
The NGT Scissor Lift Table Truck combines material transport with adjustable-height lifting, helping operators move and position loads at a convenient working height. Available in manual hydraulic and semi-electric lifting configurations for different handling requirements.
Specification
| Specification | Unit | NGT-SLTT-150C | NGT-SLTT-500C | NGT-SLTT-1500DC | NGT-ESLTT-300 | NGT-ESLTT-500 | NGT-ESLTT-750 |
|---|---|---|---|---|---|---|---|
| Variant | — | Manual | Manual | Manual | Semi-Electric | Semi-Electric | Semi-Electric |
| Load Capacity | kg | 150 | 500 | 1500 | 300 | 500 | 750 |
| Minimum Platform Height | mm | 210 | 280 | 500 | 290 | 440 | 420 |
| Maximum Platform Height | mm | 720 | 900 | 1700 | 880 | 1025 | 970 |
| Platform Dimensions | mm | 700 × 450 × 35 | 815 × 500 × 50 | 1200 × 610 × 80 | 850 × 500 × 50 | 1010 × 520 × 50 | 1000 × 510 × 55 |
| Wheel Size | mm | Ø100 | Ø125 | Ø150 | 125 × 40 | 150 × 48 | 147 × 50 |
| Total Length | mm | — | — | — | 1145 | 1305 | 1345 |
| Handle Height | mm | — | — | — | 920 | 970 | 935 |
| Lifting Speed (With / Without Load) | mm/s | — | — | — | 65 / 94 | 65 / 94 | 70 / 80 |
| Lowering Speed (With / Without Load) | mm/s | — | — | — | 98 / 74 | 98 / 74 | 50 / 35 |
| Battery Voltage / Capacity | V / Ah | — | — | — | 2 × 12 / 15 | 2 × 12 / 24 | 2 × 12 / 15 |
| Platform Travel | mm | — | — | — | 590 | 585 | 550 |
| Lifting Motor Power | kW | — | — | — | 0.8 | 0.8 | 0.8 |
| Charger | V / A | — | — | — | 24 / 3 | 24 / 3 | 24 / 3 |
| Net Weight | kg | 40 | 82 | 225 | 115 | 157 | 160 |
Overview
The NGT Scissor Lift Table Truck is a versatile material handling solution designed to transport, raise, lower and position loads within warehouses, production facilities, workshops and assembly environments.

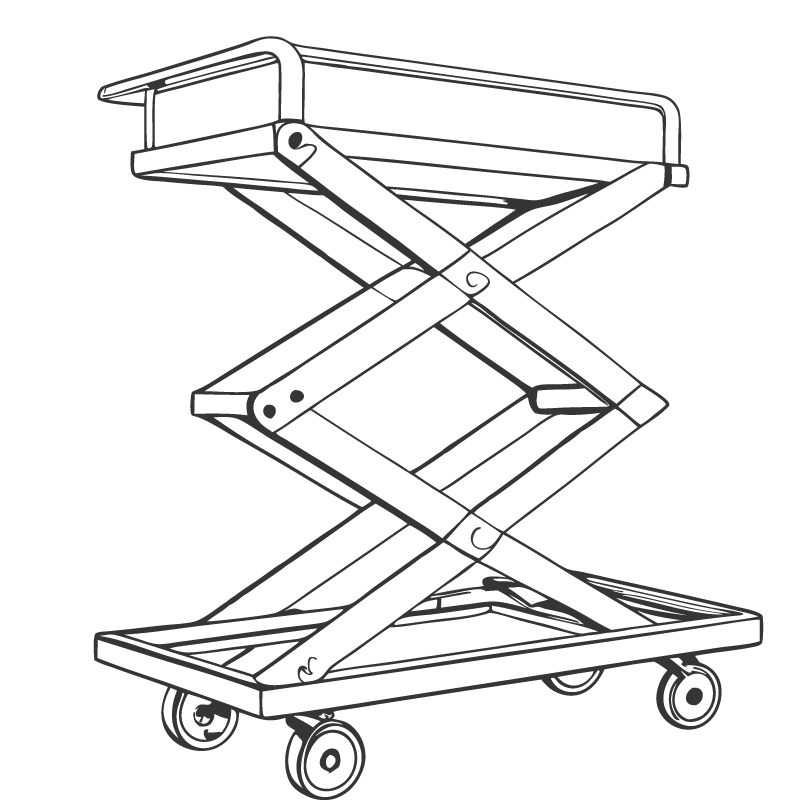

Its scissor-lift mechanism raises the steel platform to the required working height, making it particularly useful for applications such as workstation feeding, assembly, loading, positioning and material transfer.

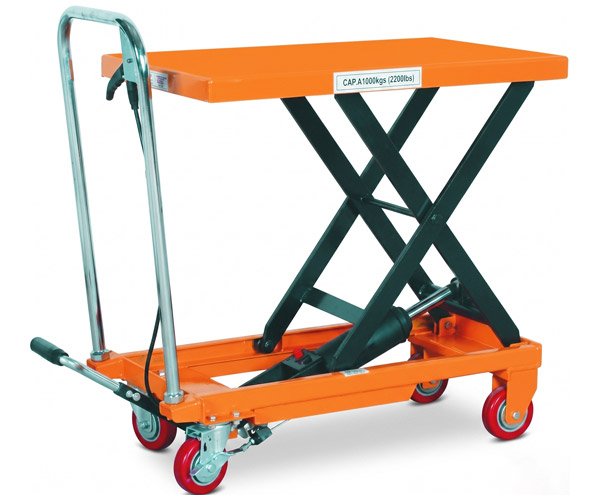

Choose from manual hydraulic models for simple, economical everyday lifting or semi-electric models for powered lifting where loads need to be raised more frequently.
Features
Lift & Transport in One Equipment
Combines a mobile trolley with an adjustable-height work platform for moving and positioning materials.
Manual & Semi-Electric Options
Choose manual hydraulic lifting for straightforward everyday use or semi-electric lifting for more frequent operations.
Wide Capacity Range
Available in configurations from 150 kg up to 1500 kg, allowing selection according to the load and application.
Adjustable Working Height
Raise materials closer to the required working level for loading, assembly, positioning and workstation feeding.
Heavy-Duty Steel Construction
Robust steel construction and steel platforms provide durability for regular warehouse and industrial use.
Controlled & Stable Operation
Braking, controlled lowering and safety-focused hydraulic design support secure material positioning during handling.
Applications
Warehousing
Lifting and transporting cartons, bins, components and materials between storage and operational areas.
Manufacturing
Moving and positioning materials at production machines, workstations and manufacturing processes.
Distribution Centres
Positioning cartons and materials at packing, inspection, preparation and dispatch stations.
Need to Lift Materials to a Better Working Height?
Share your load weight, load dimensions, required platform size, minimum height, maximum working height and lifting frequency with our team, and we’ll help you select the right Scissor Lift Table Truck.
