Mobile Ramp
The NGT Mobile Dock Ramp provides a practical ground-to-vehicle access solution for loading and unloading trucks and containers with forklifts.
Designed for facilities without a permanent raised loading dock, the ramp creates an inclined pathway from ground level to the vehicle bed. Its mobile configuration allows it to be repositioned according to changing loading requirements.
Specification
| Specification | Unit | NGT-MDR-10000 |
|---|---|---|
| Rated Capacity | kg | 10000 |
| Overall Length | mm | 11000 |
| Overall Width | mm | 2200 |
| Usable Ramp Width | mm | 2000 |
| Working Height Range | mm | 900–1700 |
| Ramp Surface | — | Anti-Skid Steel Grating |
| Mobility | — | Mobile |
| Application | — | Ground-to-Truck / Container Loading |
| Suitable Equipment | — | Forklift |
| Construction | — | Heavy-Duty Steel |
Overview
Turn Ground-Level Loading Areas into Forklift-Accessible Bays

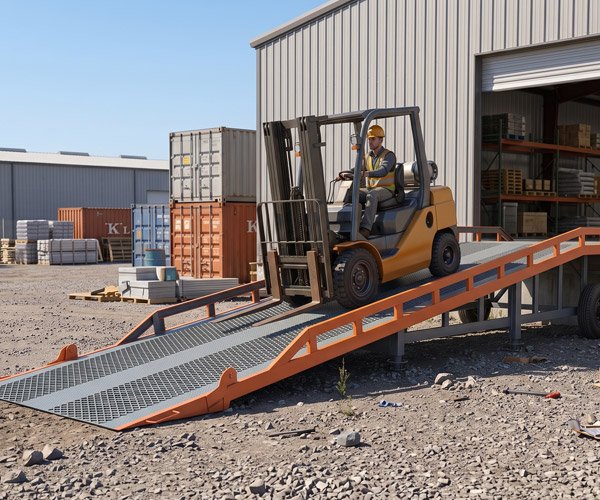

The NGT Mobile Dock Ramp enables forklifts to travel between ground level and elevated truck or container floors, eliminating the need for a permanent loading dock in suitable applications.
The ramp is positioned against the vehicle, adjusted to the required loading height and secured before operation. The forklift can then travel directly up the ramp to load or unload palletized materials.
Its mobile design makes it particularly useful for warehouses, factories, logistics yards and temporary loading locations.
Features
Direct Forklift Access
Creates a continuous inclined pathway for suitable forklifts to travel from ground level directly into trucks or containers.
Mobile Design
Can be repositioned between compatible loading locations according to operational requirements.
Adjustable Working Height
The ramp height can be adjusted within its specified range to accommodate compatible truck and container loading heights.
Heavy-Duty Steel Structure
Robust structural construction designed for demanding industrial loading and unloading operations.
Anti-Skid Ramp Surface
The working deck is designed to provide traction for forklift movement during loading and unloading.
No Permanent Loading Dock Required
Provides a practical loading solution for facilities where constructing a conventional raised dock is not feasible or required.
Applications
Warehousing
Direct forklift loading and unloading of palletized goods at warehouses without raised loading docks.
Manufacturing
Movement of raw materials, components and finished goods between ground-level factory areas and transport vehicles.
Distribution Centres
Flexible forklift access for trucks and containers across logistics yards and loading areas.
Logistics & 3PL
Supports palletized inbound and outbound material movement where permanent dock access is unavailable.
Pharma & Chemical
Heavy-duty vehicle loading and unloading in factories, plants and industrial yards.
Looking for a safe and reliable docking solution?
Share your forklift weight, maximum load, truck/container height and loading frequency, and our team will help configure the right Mobile Dock Ramp for your operation.
