Ride-On Electric Tugger
Reliable, durable and easy-to-operate hydraulic pallet truck for everyday material handling needs.
Specification
| Specification | Unit | NGT-RET-1000 |
|---|---|---|
| Load Capacity | kg | 1000 |
| Drive Type | — | Battery Electric |
| Operator Type | — | Ride-On |
| Platform Type | — | Flat Steel Platform with Side Rails |
| Platform Size (L × W) | mm | 2000 × 1000 |
| Platform Height | mm | 400 |
| Drive Motor Power | kW | 1.5 |
| Battery Voltage | V | 48 |
| Battery Capacity | Ah | 100 |
| Travel Speed (Laden) | km/h | 8 |
| Travel Speed (Unladen) | km/h | 10 |
| Gradeability (Laden) | % | 8 |
| Turning Radius | mm | 2500 |
| Steering Type | — | Handlebar Steering |
| Tyre Type | — | Pneumatic |
| Number of Wheels | — | 4 |
| Service Brake | — | Hydraulic |
| Parking Brake | — | Mechanical |
| Charging Time | hours | 6–8 |
| Operating Range | km | 20–30 |
| Construction | — | Heavy-Duty Mild Steel |
Overview

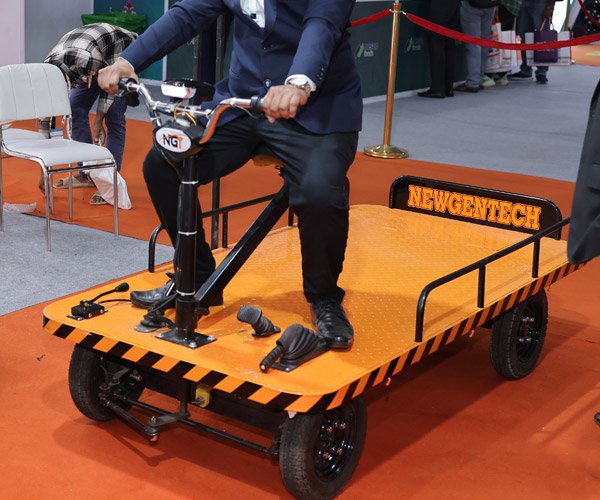

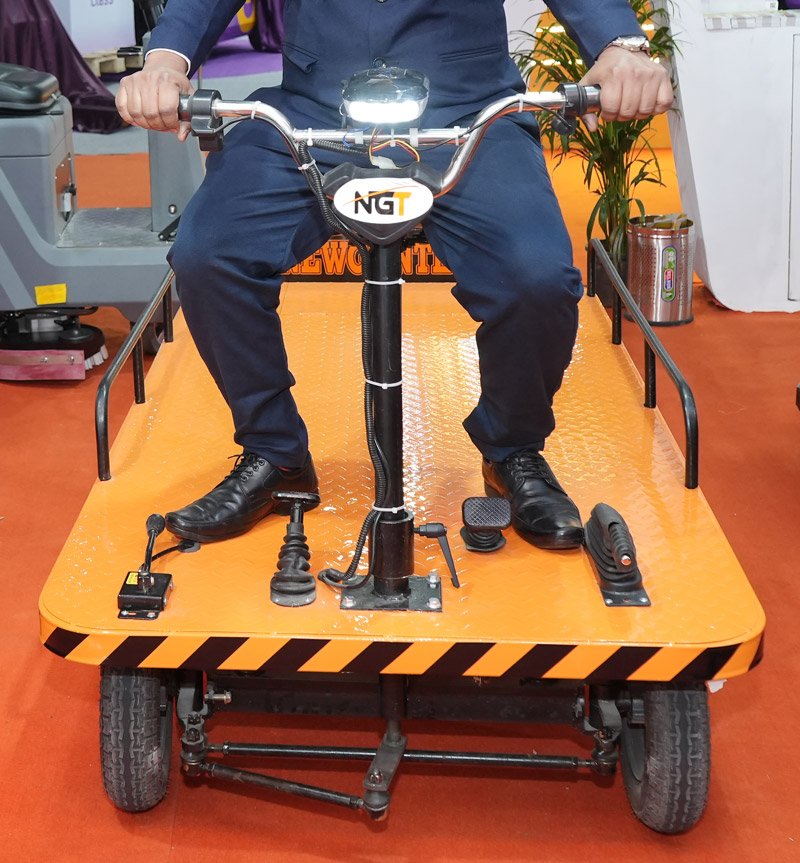

The NGT Ride-On Electric Platform Trolley provides a practical solution for transporting materials that are difficult, inefficient or time-consuming to move using conventional manual trolleys.
A large flat loading deck accommodates cartons, bins, components, tools, equipment and other industrial materials, while the electric drive allows the operator to ride with the trolley rather than manually pushing the load.
This type of powered platform trolley is particularly useful where materials need to travel repeatedly between stores, production lines, assembly areas, warehouses and dispatch zones.
Comparable electric platform trolleys are used for exactly this type of warehouse and factory transport, with battery-powered drive intended to reduce operator effort during heavy or repetitive material movement.
Features
Battery-Powered Drive
Electric propulsion reduces the physical effort associated with manually pushing loaded platform trolleys.
Ride-On Operation
The operator rides on the equipment during travel, making it particularly useful for repetitive movement over longer internal routes.
Large Loading Platform
The wide flat deck provides space for transporting cartons, containers, components and other non-palletized materials.
Handlebar Steering
Handlebar-style steering provides a familiar control arrangement for maneuvering the trolley around industrial facilities.
Load Retaining Rails
Raised rails around the loading deck help define the load area and provide additional containment for materials during movement.
Industrial Construction
A robust platform and chassis are designed for regular material movement in warehouse and manufacturing environments.
Applications
Warehousing
Manufacturing
Transport of raw materials, components and finished goods between stores, production lines and work areas.
Distribution Centres
Movement of packages, containers and materials between receiving, sorting, picking and dispatch operations.
Logistics & 3PL
Efficient internal transportation of materials across high-activity logistics and fulfilment facilities.
Automotive & Engg.
Movement of components, tools, assemblies and production materials between manufacturing workstations.
Pharma & Chemical
Longer-distance internal transport of equipment and general materials across factories and industrial campuses.
Moving Materials Across Long Distances Inside Your Facility?
Share your load weight, load dimensions, travel distance, operating hours and number of trips per shift, and our team can recommend the right electric platform trolley configuration.
